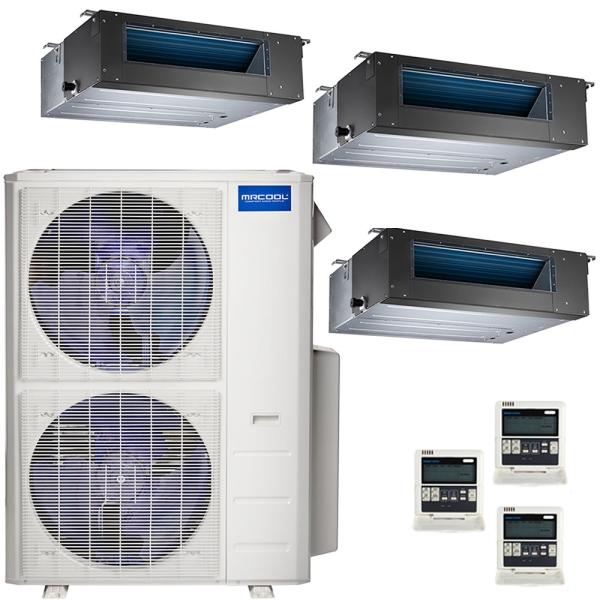

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 12k+12k+24k

Item: HA11789
Models: MULTI5-48HP230V1, DUCT-12HP-230, DUCT-24HP-230
Condition: New

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 12k+12k+24k Zoom

Photo Gallery

Related Videos

Versatility is a huge advantage in heating and cooling your home, but until MRCOOL came up with Olympus Ductless Heat Pump Split Systems, versatility was hard to find. Now, with the MULTI5-48HP230V1 condenser, you can customize your system with up to five independent comfort zones. This 48k BTU, 22.4 SEER version creates 3 zones with a powerful 24k concealed duct air handler, covering one big space, and two 12k units suited to medium-sized spaces.

Availability: In stock

Was: $4,715.00 Click for price

Price as configured:

Was: $4,715.00 Click for price
Ingram Financing


Ships Within 1-2 Business Days

Due to order volume, this item may not ship for 5-7 business days.

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone 48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone Item: HA11048 Model: MULTI5-48HP230V1 Qty: 1
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 2
24k BTU MrCool Olympus Ceiling Recessed Air Handler 24k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11059 Model: DUCT-24HP-230 Qty: 1

* Required Fields

Overview

Look to MRCOOL to keep your customers and employees comfortable all year long via a concealed duct cooling and heating from the Olympus Series. Whether you own a hotel, motel, restaurant, shop, or other type of business, MRCOOL ductless solutions are a great choice for saving energy while maintaining comfort. Plus, this system will last for years to come.

For optimal performance and energy savings, ensure your wired controllers are not installed directly in sunlight. Doing so can result in unwanted conditions and longer run times. This system comes loaded with features that have been designed to make your life easier. For starters, leak detection alerts you if a problem is to ever arise. If a leak were to ever occur, it can result in damage to your compressor and ultimately leave you without a home comfort system. With leak detection, you will know quickly about any issue so you have time to call a technician and have the problem resolved before damaging your system. If damage does occur, this system has a great compressor and parts warranty to save you money on costly component repairs.

The 48,000 BTU MRCOOL Olympus ductless heat pump system comes with 3 zone concealed duct air handlers to install throughout your business. The two 12,000 BTU air handlers are great for spaces 450 to 550 square feet each and the 24,000 BTU air handler can be used in spaces up to 1500 square feet. If you wanted to combine all 3 air handlers in one space, the condenser has the capability of creating comfort for spaces 2000 to 2400 square feet in total. If this package doesn’t suit your size, look at other options within the MRCOOL Olympus series for a wide variety of sizes and combination packages.

Versatility is a huge advantage in heating and cooling your home, but until MRCOOL came up with Olympus Ductless Heat Pump Split Systems, versatility was hard to find. Now, with the MULTI5-48HP230V1 condenser, you can customize your system with up to five independent comfort zones. This 48k BTU, 22.4 SEER version creates 3 zones with a powerful 24k concealed duct air handler, covering one big space, and two 12k units suited to medium-sized spaces.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI5-48HP230V1,DUCT-12HP-230,DUCT-12HP-230,DUCT-24HP-230
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 3
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 52
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 224.0000
Region Compatibility Nationwide

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-24HP-230 Specifications:

Model DUCT-24HP-230
UPC 853962006548
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 11
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 57.0000
