48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 12k+18k+18k

Item: HA11829
Models: MULTI5-48HP230V1, DUCT-12HP-230, DUCT-18HP-230
Condition: New

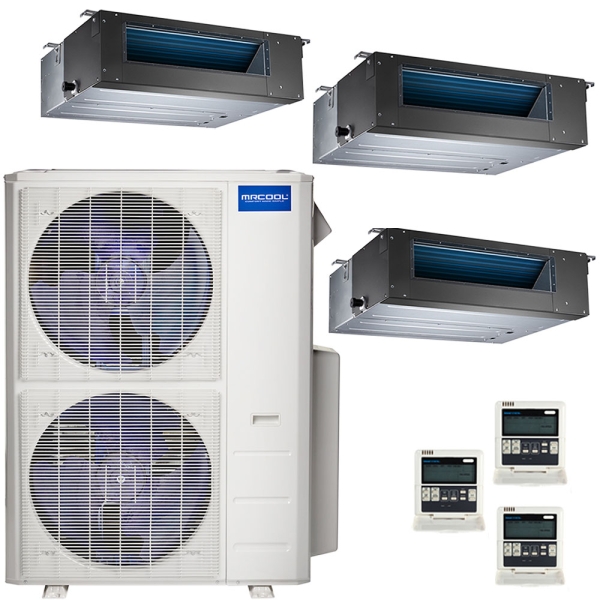

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 12k+18k+18k Zoom

Photo Gallery

Related Videos

When you choose a MRCOOL Olympus Ductless Heat Pump Split System, you direct the airflow to every corner of your house that you desire. This 48k BTU, 22.4 SEER configuration is anchored by a MULTI5-48HP230V1 condenser featuring R-410A refrigerant, high efficiency compressor, and advanced inverter variable-speed technology. Inside, dual 18k concealed duct air handlers take charge of larger zones. A slightly smaller zone is handled by a 12k unit.

Availability: Out of stock

As low as: $6,243.00

Price as configured: $6,243.00

Call for availability

Up To $500 Cash Back

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 1
18k BTU MrCool Olympus Ceiling Recessed Air Handler 18k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11058 Model: DUCT-18HP-230 Qty: 2

Overview

With heat pump technology, you can enjoy comfort in your home or business all year long. MRCOOL ductless heat pump systems offers you both heating or cooling at the push of a button. With the auto swing mode, you will get random bursts of air in different directions, providing you with even coverage throughout your space.

Plus, the concealed duct system is designed to give you all of the benefits of a ductless system without having the air handler visible. As the name implies, this system can be installed behind drywall to be left out of sight and out of mind without sacrificing performance. The concealed duct system comes with a terrific compressor and parts warranty protection.

The 48,000 BTU MRCOOL Olympus ductless heat pump system comes with 3 concealed duct air handlers that can be installed through your space. It has fresh air capabilities, making it the perfect choice for small commercial applications. The 12,000 BTU air handler is great for spaces between 450 to 550 square feet while the two 18,000 BTU air handlers can serve a space between 700 to 1000 square feet each. MRCOOL makes it easy on your installing contractor as mostly everything you need is provided in this package. Included in this package is a heat pump condenser, 3 air handlers, and 3 wired controllers.

When you choose a MRCOOL Olympus Ductless Heat Pump Split System, you direct the airflow to every corner of your house that you desire. This 48k BTU, 22.4 SEER configuration is anchored by a MULTI5-48HP230V1 condenser featuring R-410A refrigerant, high efficiency compressor, and advanced inverter variable-speed technology. Inside, dual 18k concealed duct air handlers take charge of larger zones. A slightly smaller zone is handled by a 12k unit.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI5-48HP230V1,DUCT-12HP-230,DUCT-18HP-230,DUCT-18HP-230
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 3
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 52
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 224.0000
Region Compatibility Nationwide

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-18HP-230 Specifications:

Model DUCT-18HP-230
UPC 853962006531
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 51.0000
