Item:
HA11799
Model:
MULTI5-48HP230V1,CASSETTE12HP-230-P,CASSETTE12HP-230-P,CASSETTE12HP-230-P,CASSETTE18HP-230-P
Condition:
New
48k-btu-22.4-seer-mrcool-olympus-ductless-heat-pump-split-system-4-zone-ceiling-cassette-12k+12k+12k+18k-ha11799-01.3548
Out of stock
Loading...

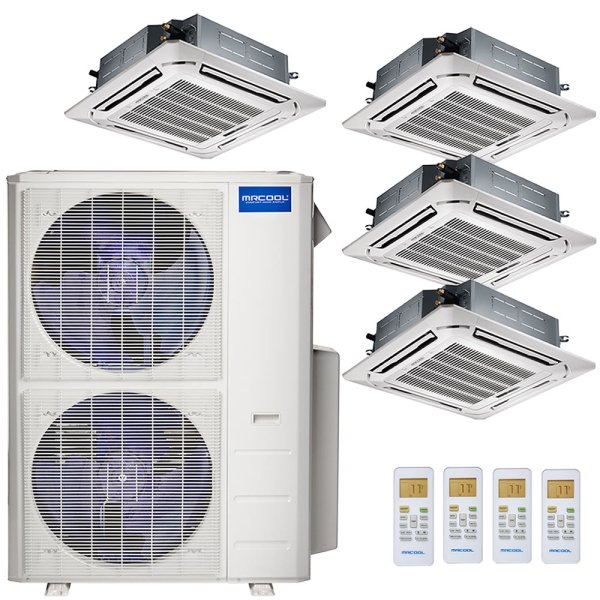

Whether it's a large-scale home or a busy office, an Olympus Ductless Heat Pump Split System from MRCOOL can help you define multiple comfort zones and maintain desired temperature throughout. This powerful configuration is anchored by a MULTI5-48HP230V1 condenser. Four comfort zones are defined with the largest serviced by an 18k ceiling cassette air handler. Three 12k units cover the remaining zones.
Accessories
MISCELLANEOUS ITEMS
extended-labor-warranty-for-ductless-mini-split-system-ef10020-01.3445
Extended Labor Warranty for Ductless Mini Split System
Item #: EF10020
Price:
As low as $61.13
Copper Line Sets WE RECOMMEND
line-set-kit-for-12k-18k-btu-mrcool-ductless-split-system-ha11924-01.3548
Line Set Kit for 18k BTU MrCool Ductless Split System
Item #: HA11924
Price:
As low as $219.18
Thermostats WE RECOMMEND
mrcool-mini-stat-ir-wifi-thermostat-for-ductless-mini-split-ha21064-01.3548
MrCool Mini Stat IR WiFi Thermostat for Ductless Mini Split
Item #: HA21064
Price:
$87.95
Equipment Pads WE RECOMMEND
18-x-38-x-3-e-lite-plastic-equipment-pad-ha12037-01.3548
18" x 38" x 3" E Lite Plastic Equipment Pad
Item #: HA12037
Price:
$172.86
HVAC Parts & Accessories WE RECOMMEND
non-fusible-60a-disconnect-switch-ha12034-01.3548
Non-Fusible 60A Disconnect Switch
Item #: HA12034
Price:
$59.34
12-x-6-ft-diversitech-non-metallic-electrical-whip-with-10-wire-ha12023-01.3548
1/2" x 6 Ft DiversiTech Non Metallic Electrical Whip with #10 Wire
Item #: HA12023
Price:
$72.53
mrcool-lineguard-4.5-line-set-cover-kit-12-ft-ha12096-01.3548
MrCool LineGuard 4.5" Line Set Cover Kit - 12 ft
Item #: HA12096
Price:
$132.00
condenser-wall-mounting-kit-for-24k-36k-btu-mrcool-ductless-split-system-ha15994-01.3558
Condenser Wall Mounting Kit for 24k & 36k BTU MrCool Ductless Split System
Item #: HA15994
Price:
$121.00
1.8-lb-r410a-refrigerent-refill-kit-with-gauge-ha12152-01.3681
1.8 lb R410a Refrigerent Refill Kit with Gauge
Item #: HA12152
Price:
$223.16
coolgas-r410a-refrigerant-25lb-cylinder-ha12191-01.3269
CoolGas 410A Refrigerant 25lb Cylinder
Item #: HA12191
Price:
$450.00
rectorseal-safe-t-switch-electronic-condensate-overflow-shut-off-switch-for-mini-splits-ha17863-01.3548
Rectorseal Safe-T-Switch Electronic Condensate Overflow Shut-Off Switch
Item #: HA17863
Price:
$129.35
foam-sealant-38-bead-12oz-ha12049-01.3548
Foam Sealant 3/8" Bead - 12oz
Item #: HA12049
Price:
$42.37
Description / Documents
Whether it's a large-scale home or a busy office, an Olympus Ductless Heat Pump Split System from MRCOOL can help you define multiple comfort zones and maintain desired temperature throughout. This powerful configuration is anchored by a MULTI5-48HP230V1 condenser. Four comfort zones are defined with the largest serviced by an 18k ceiling cassette air handler. Three 12k units cover the remaining zones.
Additional Documents

From the Manufacturer

Helpful Buying Guides
Customer Reviews / Q&A
Specifications

System Overview

Model MULTI5-48HP230V1,CASSETTE12HP-230-P,CASSETTE12HP-230-P,CASSETTE12HP-230-P,CASSETTE18HP-230-P
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 4
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
Region Compatibility Nationwide

CASSETTE18HP-230-P Specifications:

Model CASSETTE18HP-230-P
UPC 810512030460
Product Height (in) 10
Configuration Ceiling Cassette
Product Length (in) 22
Air Flow Direction Downflow
Product Width (in) 22
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 40.000000
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
