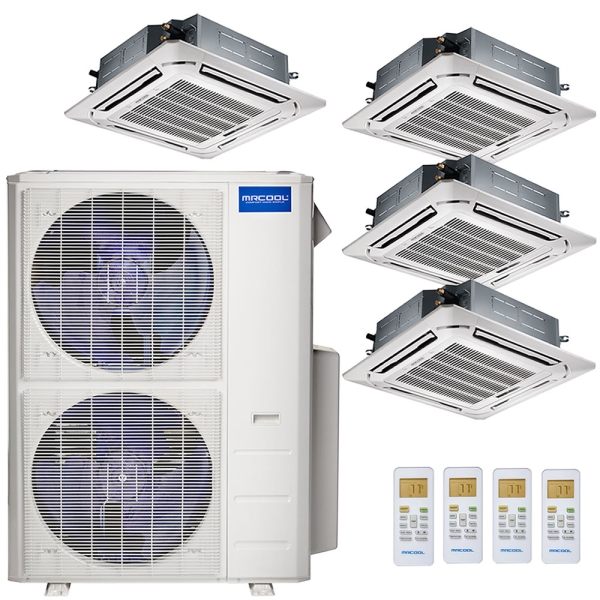

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Ceiling Cassette - 12k+12k+12k+24k

Item: HA11800
Models: MULTI5-48HP230V1, CASSETTE12HP-230-P, CASSETTE24HP-230-P
Condition: New

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Ceiling Cassette - 12k+12k+12k+24k Zoom

Photo Gallery

Related Videos

Think your home is too big for an Olympus Ductless Heat Pump Split System from MRCOOL? Think again, cowboy. This configuration, anchored by a MULTI5-48HP230V1 condenser, packs 60k BTU of capacity with a 22.4 SEER. Quad-zone coverage is managed by a 24k ceiling cassette air handler, and three 12k ceiling cassette units.

Availability: Out of stock

As low as: $7,236.00

Price as configured: $7,236.00

Call for availability

$100 Rebate Offer

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11053 Model: CASSETTE12HP-230-P Qty: 3
24k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 24k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11055 Model: CASSETTE24HP-230-P Qty: 1

Overview

Think your home is too big for an Olympus Ductless Heat Pump Split System from MRCOOL? Think again, cowboy. This configuration, anchored by a MULTI5-48HP230V1 condenser, packs 60k BTU of capacity with a 22.4 SEER. Quad-zone coverage is managed by a 24k ceiling cassette air handler, and three 12k ceiling cassette units.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI5-48HP230V1,CASSETTE12HP-230-P,CASSETTE12HP-230-P,CASSETTE12HP-230-P,CASSETTE24HP-230-P
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 4
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 52
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 224.0000
Region Compatibility Nationwide

CASSETTE12HP-230-P Specifications:

Model CASSETTE12HP-230-P
UPC 810512030453
Air Flow Direction Downflow
Configuration Ceiling Cassette
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 10
Product Length (in) 22
Product Width (in) 22
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 35.0000

CASSETTE24HP-230-P Specifications:

Model CASSETTE24HP-230-P
UPC 810512030477
Air Flow Direction Downflow
Configuration Ceiling Cassette
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 3/8 inch
Max Overcurrent Protection 20 amps
Product Height (in) 8
Product Length (in) 33
Product Width (in) 33
Series Olympus
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 45.0000

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
What are the dimensions of the cassette's, and also can I add on another cassette later on?
What kind of cubic footage will the 12K , and 24K cassettes condition? How do l know what size units I should put in different size rooms?
