Overview
Connect up to 5 air handlers to one condenser with this ductless heat pump from MRCOOL. This system will keep you cool in the summer and toasty in the winter. Ductless heat pump technology allows you to create comfort through all four seasons by only using refrigerant. This system was built to last, but should a problem ever arise, you will be glad to know that this system comes with a compressor and parts warranty.
The concealed duct system is a great choice if you do not want your ductless air handlers to be exposed. They have been specifically designed to be hidden behind drywall or drop ceiling, so you can keep your home or business decor uninterrupted. If you are looking to take advantage of energy rebates, you may qualify when upgrading to more efficient systems like this one. Check your local area and see if you qualify!

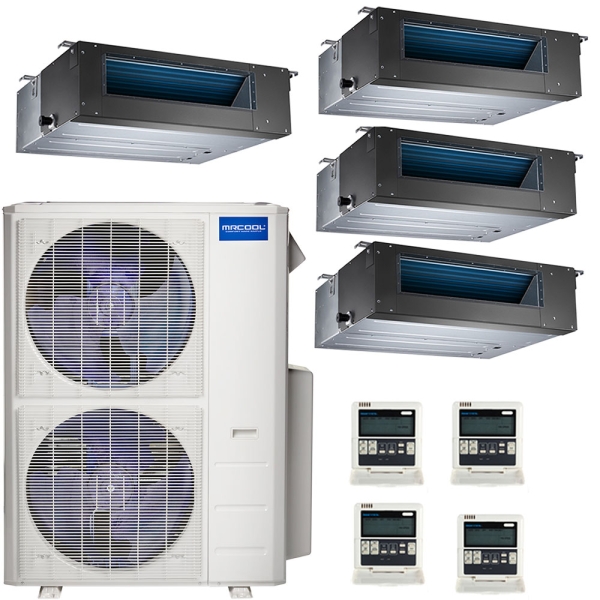

This 48,000 BTU MRCOOL Olympus ductless heat pump system comes with 4 concealed duct air handlers. Giving you the benefit of zone and inverter technology, you should save money on your monthly utility bills when upgrading from a traditional system. Using only electricity, this system does not require the use of natural gas or propane. Each of these 4 air handlers are sized at 12,000 BTU and can create comfort for spaces between 450 to 550 square feet each. If you are using this system for one common space, all of the units can be combined to serve a space between 2000 to 2400 square feet.
Priced to fit your budget, look to MRCOOL for all of your ductless heat pump needs!
This 48k BTU, 22.4 SEER MRCOOL Olympus Ductless Heat Pump Split System gives you complete control over your environment. In this quad-zone iteration, you get four equally powerful concealed duct air handlers, each capable of covering a substantial living area. These units are attractive, simple to operate, and their awesome features include everything from Sleep Mode to Louver Position Memory. A MULTI5-48HP230V1 condenser anchors this system.
Warranty Terms
For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.
Installation of any product must comply with all applicable codes and regulations. The service of a certified and trained electrical technician may be required for the installation process.
Specifications
| Model | MULTI5-48HP230V1,DUCT-12HP-230,DUCT-12HP-230,DUCT-12HP-230,DUCT-12HP-230 |
|---|---|
| UPC | 856536005862 |
| AHRI Number | 8977710 |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| EER | 12.5 |
| Heat Pump Efficiency (HSPF) | 10.2 |
| Series | Olympus |
| Zones | 4 |
| Region Compatibility | Nationwide |
| Popular Applications | Apartment, Duplex, Hotel Room, Office, Single Family Home |
| California Residents | see Prop 65 WARNING |
MULTI5-48HP230V1 Specifications:
| Model | MULTI5-48HP230V1 |
|---|---|
| UPC | 856536005862 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Compressor | Inverter |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF) | 10.2 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 50 amps |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Product Height (in) | 52 |
| Product Length (in) | 16 |
| Product Width (in) | 37 |
| Cooling Efficiency | 19 SEER and Above |
| Series | Olympus |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Weight (lbs) | 224.0000 |
| Region Compatibility | Nationwide |
DUCT-12HP-230 Specifications:
| Model | DUCT-12HP-230 |
|---|---|
| UPC | 853962006524 |
| Air Flow Direction | Horizontal |
| Configuration | Ceiling Mounted |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | NA |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Product Height (in) | 8 |
| Product Length (in) | 25 |
| Product Width (in) | 28 |
| Series | Olympus |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
| Weight (lbs) | 40.0000 |
