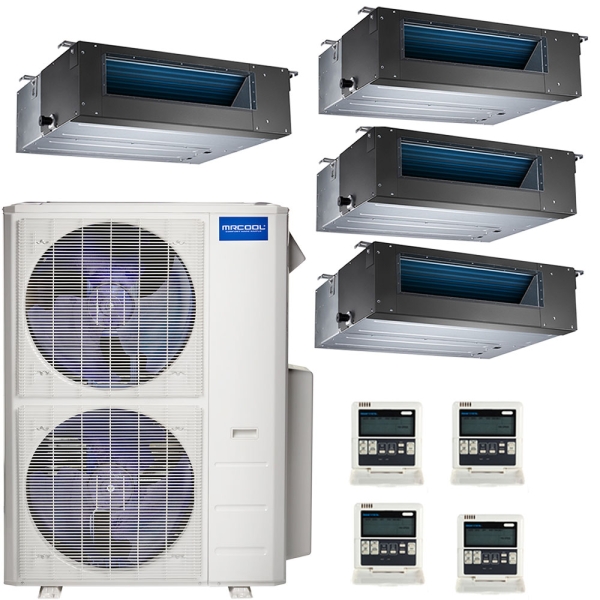

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Concealed Duct - 9k+12k+12k+18k

Item: HA11824
Models: MULTI5-48HP230V1, DUCT-09HP-230, DUCT-12HP-230, DUCT-18HP-230
Condition: New

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Concealed Duct - 9k+12k+12k+18k Zoom

Photo Gallery

Related Videos

This quad-zone ductless system from MRCOOL uses heat pump technology to keep you cool in summer and warm in winter. A powerful MULTI5-48HP230V1 condenser anchors this 51k BTU, 22.4 SEER system using R-410A refrigerant and inverter variable-speed action to dispense power as required. Air handlers are of the concealed duct variety, sized as follows: one 18k unit, two 12k units, and one 9k unit. This system carries the MRCOOL warranty: 7 years on the compressor and 5 years on parts.

Availability: In stock

Was: $5,139.00 Click for price

Price as configured:

Was: $5,139.00 Click for price
Ingram Financing

48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone 48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone Item: HA11048 Model: MULTI5-48HP230V1 Qty: 1
9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 1
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 2

* Required Fields

Ships Within 2-3 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone 48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone Item: HA11048 Model: MULTI5-48HP230V1 Qty: 1
9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 1
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 2
18k BTU MrCool Olympus Ceiling Recessed Air Handler 18k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11058 Model: DUCT-18HP-230 Qty: 1

Overview

If you are ready to update your out of date HVAC system, the Olympus Ductless Heat Pump Split System is a great choice! With innovation and efficiency, this system contains top of the line features. The concealed duct system contains a highly efficient inverter compressor which regulates the speed based on your demand, and only working as hard as it needs to. This ultimately gives you a quieter and more efficient system with less wear and tear so your system will last for years to come.

Traditional compressors do not have the capability of speeding up or slowing down, that is why they are typically associated with a loud banging noise when they turn on. As the compressor turns on and off, you get inconsistent temperatures in your home or business while inverters try to maintain a steady temperature approach. The most costly time to run a compressor is when it initially turns on and spikes in current draw. The Olympus inverter stays on and modulates to its slowest speed when there is not a large demand, avoiding those spikes associated with traditional compressors.

The 48,000 BTU MRCOOL Olympus ductless heat pump system come with 4 concealed duct systems to install throughout your space. The 9000 BTU air handler can be installed in spaces 350 to 400 square feet. The two 12,000 BTU air handlers can be installed in spaces 450 to 550 square feet, and the 18,000 BTU system is great for spaces 700 to 100 square feet. MRCOOL’s Olympus series has over 100 packages to choose from so you find the ideal choice for your home or business. Check your local rebate programs and see if you qualify for replacing your inefficient equipment to high efficiency systems like this one!

This quad-zone ductless system from MRCOOL uses heat pump technology to keep you cool in summer and warm in winter. A powerful MULTI5-48HP230V1 condenser anchors this 51k BTU, 22.4 SEER system using R-410A refrigerant and inverter variable-speed action to dispense power as required. Air handlers are of the concealed duct variety, sized as follows: one 18k unit, two 12k units, and one 9k unit. This system carries the MRCOOL warranty: 7 years on the compressor and 5 years on parts.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI5-48HP230V1,DUCT-09HP-230,DUCT-12HP-230,DUCT-12HP-230,DUCT-18HP-230
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 4
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 52
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 224.0000
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-18HP-230 Specifications:

Model DUCT-18HP-230
UPC 853962006531
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 51.0000
