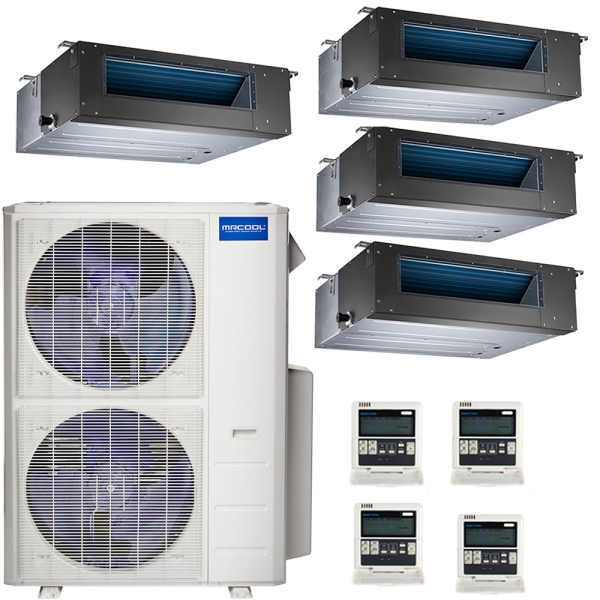

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Concealed Duct - 9k+9k+12k+18k

Item: HA11785
Models: MULTI5-48HP230V1, DUCT-09HP-230, DUCT-12HP-230, DUCT-18HP-230
Condition: New

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Concealed Duct - 9k+9k+12k+18k Zoom

Photo Gallery

Related Videos

With MRCOOL Olympus Ductless Heat Pump Split Systems, you can bring your old-fashioned heating and cooling into the 21st century without the hassle of installing ducts. In this system, a MULTI5-48HP230V1 condenser operates at 48k BTU capacity with a 22.4 SEER. A high efficiency compressor utilizes eco-friendly R-410A refrigerant with leak detection technology and other energy-wise features. The quad-zone setup here consists of one 18k concealed duct air handler with one 12k unit and two 9k units.

Availability: Out of stock

As low as: $6,868.00

Price as configured: $6,868.00

Call for availability

Up To $500 Cash Back

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 2
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 1
18k BTU MrCool Olympus Ceiling Recessed Air Handler 18k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11058 Model: DUCT-18HP-230 Qty: 1

Overview

Find comfort this winter season by keeping your customers warm and toasty, with MRCOOL concealed duct systems. With fresh air, heating and cooling capabilities, this system is the perfect addition to any small business. Keep your air handling units indoors and avoid rooftop scheduled maintenance on those cold winter months. MRCOOL makes maintenance easy while providing you with easy access to reusable filters on some models that can be vacuumed or washed and reinstalled. The concealed duct system has been specifically designed to blend seamlessly into your ceiling space, out of sight and out of mind without interrupting your indoor decor. If you are in the market for a ductless heat pump system, keep MRCOOL concealed duct system in mind and avoid complicated rooftop installations.

This 48,000 BTU MRCOOL Olympus ductless heat pump system comes with 4 concealed duct air handlers that can be installed together or separately throughout your space. If you are combining units to serve one space, this system has the capacity to serve 2000 to 2400 square feet in total. Separately the two 9000 BTU air handlers can be installed in a space 350 to 400 square feet each. The 12,000 BTU unit can serve a space 450 to 550 square feet, and the 18,000 BTU air handler can serve a space 700 to 100 square feet. Providing you with your ductless heat pump needs, some MRCOOL packages come with up to 5 air handlers attached to one condenser. The Olympus series has over 100 packages to choose from so you can be sure to find a system that fits your HVAC needs.

With MRCOOL Olympus Ductless Heat Pump Split Systems, you can bring your old-fashioned heating and cooling into the 21st century without the hassle of installing ducts. In this system, a MULTI5-48HP230V1 condenser operates at 48k BTU capacity with a 22.4 SEER. A high efficiency compressor utilizes eco-friendly R-410A refrigerant with leak detection technology and other energy-wise features. The quad-zone setup here consists of one 18k concealed duct air handler with one 12k unit and two 9k units.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI5-48HP230V1,DUCT-09HP-230,DUCT-09HP-230,DUCT-12HP-230,DUCT-18HP-230
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 4
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 52
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 224.0000
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-18HP-230 Specifications:

Model DUCT-18HP-230
UPC 853962006531
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 51.0000

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
I would like to find a DYI Concealed Duct system I can put in my attic. My wife and I do not want the ugly units on our walls. We have an insulated roof and space we can place air handlers in our attic. Do you have anything?
what is the max length of the precharged coolant lines for these units
