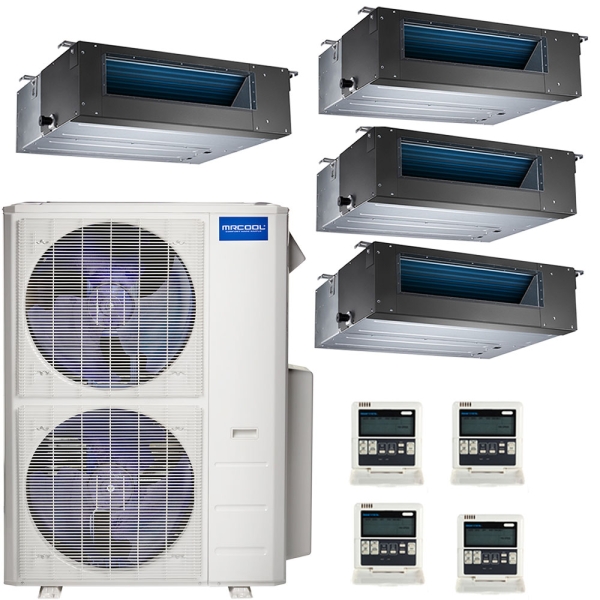

Flexibility brings you big rewards with this powerful quad-zone Olympus Ductless Heat Pump Split System from MRCOOL. A MULTI5-48HP230V1 condenser anchors this five-component system. Its 54k BTU of capacity combines with features like advanced inverter variable-speed technology to earn a 22.4 SEER. Four concealed duct air handlers provide targeted comfort inside. Each unit contains its own coil and blower, and each can be programmed with functions including Sleep Mode.
Accessories
Description / Documents

If you are searching for a ductless HVAC solution with many convenient features, MRCOOL has a system for you! This MRCOOL systems comes with wireless remotes so you do not have to get up every time you want to change the temperature. The adjustable louvers also makes it easy to direct the airflow where you want it in your space. This system is great for large open spaces. It also comes with 5 air handlers that can be strategically installed throughout your space or all installed into one large space. Get heating and cooling from the moment this system is easily installed with the Olympus Ductless Heat Pump Split System. No need for duct work, gas or propane for this installation. With each unit’s sleek white design, they will fit perfectly in any ceiling space and give you a large air reach on all four sides.

Keep comfortable year round with this 48,000 BTU MRCOOL Olympus ductless heat pump system that comes with 5 air handlers. Each of the air handlers are sized at 12,000 BTU and can serve spaces 450 to 550 square feet each. If you are looking to install all 5 in one space, this package has been designed to serve 2000 to 2400 square feet in total. This economical choice comes with the maximum number of air handlers available in a MRCOOL ductless system. Carrying a large variety of efficient products, MRCOOL brings you different heat pump options for any occasion. The concealed duct system is great for fresh air requirements while wall mounted units are the most common. The ceiling cassette is a great choice if you want to save on wall space and get the best coverage in a large space!

Flexibility brings you big rewards with this powerful quad-zone Olympus Ductless Heat Pump Split System from MRCOOL. A MULTI5-48HP230V1 condenser anchors this five-component system. Its 54k BTU of capacity combines with features like advanced inverter variable-speed technology to earn a 22.4 SEER. Four concealed duct air handlers provide targeted comfort inside. Each unit contains its own coil and blower, and each can be programmed with functions including Sleep Mode.

Customer Reviews / Q&A
Specifications

System Overview

Model MULTI5-48HP230V1,DUCT-09HP-230,DUCT-09HP-230,DUCT-18HP-230,DUCT-18HP-230
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 4
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Product Height (in) 8
Configuration Ceiling Mounted
Product Length (in) 25
Air Flow Direction Horizontal
Product Width (in) 28
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 40.000000
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
