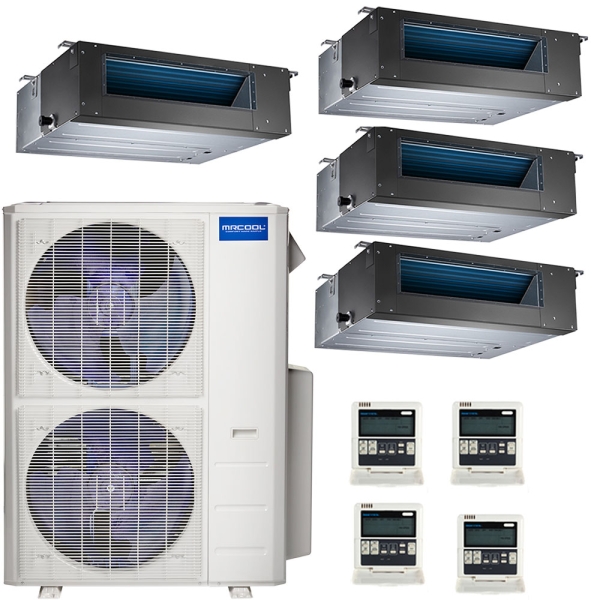

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Concealed Duct - 9k+9k+9k+24k

Item: HA11805
Models: MULTI5-48HP230V1, DUCT-09HP-230, DUCT-24HP-230
Condition: New

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Concealed Duct - 9k+9k+9k+24k Zoom

Photo Gallery

Related Videos

A powerful MULTI5-48HP230V1 condenser anchors this 51k BTU, 22.4 SEER Olympus Ductless Heat Pump Split System from MRCOOL. Four concealed duct air handlers create the temperature you need, where and when you want it. For your great room, a 24k unit does the job. Three 9k air handlers can pre-heat or pre-cool each of your bedrooms with programming capabilities including Sleep Mode, Auto Swing, and Louver Position Memory.

Availability: In stock

Was: $5,173.00 Click for price

Price as configured:

Was: $5,173.00 Click for price
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone 48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone Item: HA11048 Model: MULTI5-48HP230V1 Qty: 1
9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 3
24k BTU MrCool Olympus Ceiling Recessed Air Handler 24k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11059 Model: DUCT-24HP-230 Qty: 1

* Required Fields

Overview

Product Features

Looking for an HVAC solution that is both efficient and built to last you for years to come? The conceal duct system comes with an inverter compressor that is not only quiet, but highly efficient so you will not have the wear and tear associated with a typical on and off compressor. Backed by a compressor and parts warranty, your system will be covered is a problem should occur. When typical compressors turn on, the current draw spikes. This common trait of older HVAC systems causes the unit to only turn on and off, costing you in the long run. Avoid those spikes and save on your bills with a system that fully modulates and does not cycle on and off continuously. With less wear and more efficient operations, you will also get the benefits of a more consistent comfortable temperature.

Stay comfortable all year round with the 48,000 MRCOOL Olympus ductless heat pump system. Providing you with 4 concealed duct air handlers, this package has a large coverage. The three 9000 BTU air handlers cover 350 to 400 square feet each while the 24,000 BTU unit can serve a space up to 1500 square feet. If you want to combine all 4 air handlers, the condenser has the capacity to serve a total of 2000 to 2400 square feet. MRCOOL has a large variety of packages to fit many project sizes. If this particular system does not fit your unique needs, MRCOOL has a variety of options for you. If your looking to save off the purchase of this efficient package, look into your local energy rebate program and see if you qualify.

A powerful MULTI5-48HP230V1 condenser anchors this 51k BTU, 22.4 SEER Olympus Ductless Heat Pump Split System from MRCOOL. Four concealed duct air handlers create the temperature you need, where and when you want it. For your great room, a 24k unit does the job. Three 9k air handlers can pre-heat or pre-cool each of your bedrooms with programming capabilities including Sleep Mode, Auto Swing, and Louver Position Memory.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model MULTI5-48HP230V1,DUCT-09HP-230,DUCT-09HP-230,DUCT-09HP-230,DUCT-24HP-230
UPC 856536005862
AHRI Number 8977710
Avg Coverage Area 2,000 - 2,400 Sq Ft
Cooling Capacity 4 Ton
Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 4
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home

Individual Item Specifications

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Lineset Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height 52
Product Length 16
Product Width 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight 224.0000
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Lineset Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height 8
Product Length 25
Product Width 28
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight 40.0000

DUCT-24HP-230 Specifications:

Model DUCT-24HP-230
UPC 853962006548
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Lineset Connection Type Flared
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height 11
Product Length 25
Product Width 36
Series Olympus
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight 57.0000
