48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 5 Zone Concealed Duct - 9k+9k+9k+12k+12k

Item: HA11802
Models: MULTI5-48HP230V1, DUCT-09HP-230, DUCT-12HP-230
Condition: New

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 5 Zone Concealed Duct - 9k+9k+9k+12k+12k Zoom

Photo Gallery

Related Videos

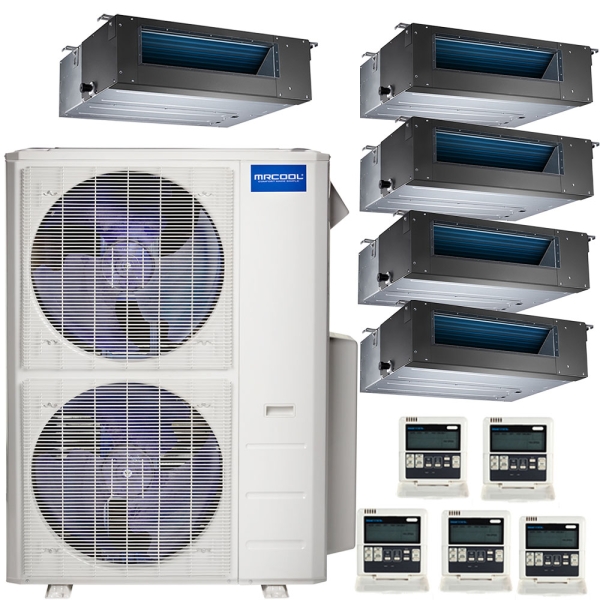

This five-zone MRCOOL Olympus Ductless Heat Pump Split System gives you the control to maximize comfort and minimize waste in every corner of your home or office. A MULTI5-48HP230V1 condenser packs 51k BTU capacity with a 22.4 SEER. Advanced inverter variable-speed technology helps to power five concealed duct air handlers sized to suit your space. Here, the system subdivides to two 12k units and three 9k units.

Availability: Out of stock

As low as: $7,512.00

Price as configured: $7,512.00

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 3
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 2

Overview

This five-zone MRCOOL Olympus Ductless Heat Pump Split System gives you the control to maximize comfort and minimize waste in every corner of your home or office. A MULTI5-48HP230V1 condenser packs 51k BTU capacity with a 22.4 SEER. Advanced inverter variable-speed technology helps to power five concealed duct air handlers sized to suit your space. Here, the system subdivides to two 12k units and three 9k units.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI5-48HP230V1,DUCT-09HP-230,DUCT-09HP-230,DUCT-09HP-230,DUCT-12HP-230,DUCT-12HP-230
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 5
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 52
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 224.0000
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Does this operate down to 5-degrees like the MR Cool DIY Systems or is it just 25-30 like most other heat pumps?
What is the difference between a ceiling recessed air handler and a ductless ceiling cassette air handler?
how and where does the cieling recessed duct mount?
Do the air handlers come with the pumps to handle the condensate?
Where are you located?
How much other stuff that you do not supply do I need to buy to install?
how do I size for rooms, 23' x 21' with 8' cieling how many BTU
Show me pictures of a room where the ductless system has been installed. I Am concerned about the appearance of the duct. Also. Can the duct be installed in the same space as the floor vent was originally cut into the floor in each room?
Can this system cool as well?
