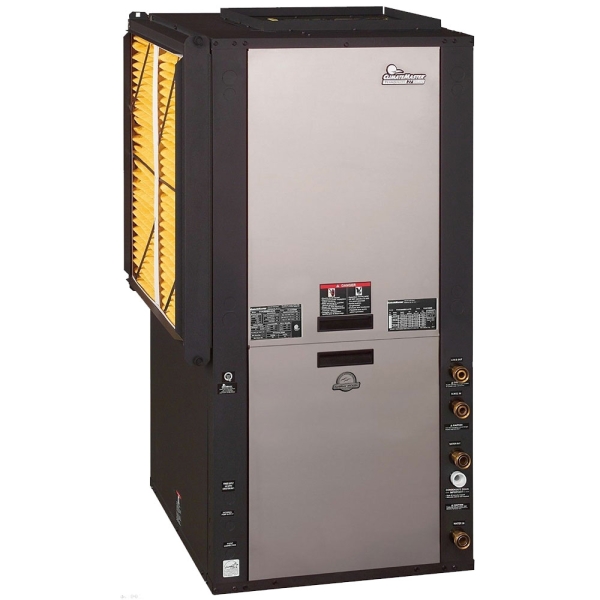

6 Ton 22.5 EER 2 Stage ClimateMaster Tranquility 30 Geothermal Heat Pump Vertical Package Unit

Item: HA16149
Model: TEV072BGD0XXXTS
Condition: New

6 Ton 22.5 EER 2 Stage ClimateMaster Tranquility 30 Geothermal Heat Pump Vertical Package Unit Zoom

Photo Gallery

Related Videos



Availability: Built to order

$11,531.16

* Required Fields

Ships Within 20 Weeks

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

ClimateMaster

What's Included

Helpful Buying Guides

What customers are saying...



Overview



Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model TEV072BGD0XXXTS
AHRI Number 7222005
Air Flow Direction Upflow
Avg Coverage Area 3,000+ Sq Ft
Blower Motor Variable Speed
Compressor Two Stage
Cooling Capacity 6+ Ton
EER 22.5
Electrical Phase 1-Phase
Heat Pump Efficiency (COP) 4.4
HWG Connection 1 inch
Loop Connection 1 inch
Max Overcurrent Protection 70 amps
Primary Heating Capacity 70,001 - 75,000 BTU
Product Height (in) 58.5
Product Length (in) 30.6
Product Width (in) 25.4
Series Tranquility 30
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 475.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Does this unit have a 20 kw backup heater
Im currently running two 6 ton HVAC units and i was curious if I can use one set of closed loop ground coils or does each unit need its own dedicated system.
Is the primary heating capacity in terms of per hour? Meaning it outputs about 75,000 BTU per hour?
Who could install your 6 Ton 22.5 EER 2 Stage ClimateMaster Tranquility 30 Geothermal Heat Pump Vertical Package Unit in Preston, Idaho? We are building a new home by the golf course and would like to heat and cool our home with a ground source geothermal heat pump. Will this system also heat our water?

Thanks
Can you describe how I would choose the water circut? When would each option be applicable? Is there some reading I could look at? Thanks for your quick response!
How large is the geothermal closed loop.? How much $ for the loop ?
I have an existing Tetco geothermal system with 6 - 150 ft. ground loop runs.

Would that be enough ground loop for a the 6 ton 2 stage ClimateMaster 30 system you are advertising?
Is this unit set up for closed loop or open loop?
