Key Points
- Refrigerant is what allows HVAC systems to remove and supply heat to your home. As of January 1, 2025, R-410A systems are not available for manufacture or import.
- R-454B is not a drop-in replacement for R-410A.
- R-410A is an A1-rated refrigerant introduced in the 1990s and used for its high efficiency. This refrigerant has been phased out due to negative impacts on the environment.
- R-454B is an A2L-rated refrigerant with a lower GWP (Global Warming Potential) and higher efficiency than R-410A. R-454B systems operate at a slightly lower pressure than R-410A options.
Do you know what refrigerant does in your HVAC system? Refrigerants play a crucial role in heating, ventilation, and air conditioning (HVAC) systems by assisting in the heat exchange process to keep buildings cool. Think of it like a sponge: it soaks in warm air and releases it elsewhere, keeping your home cool. Until recently, R-410A has been a common refrigerant choice due to its efficiency and performance. However, R-410A lacks sustainability and environmental friendliness, leading to increased regulatory pressures. Regulatory bodies are directing the HVAC industry to phase out R-410A, leading manufacturers and contractors to look to new, efficient refrigerants, like R-454B and R-32. While both are great options, R-454B boasts slightly better sustainability properties. Read on to explore the feasibility, implications, and considerations of shifting to R-454B for your HVAC system.
Understanding Refrigerants

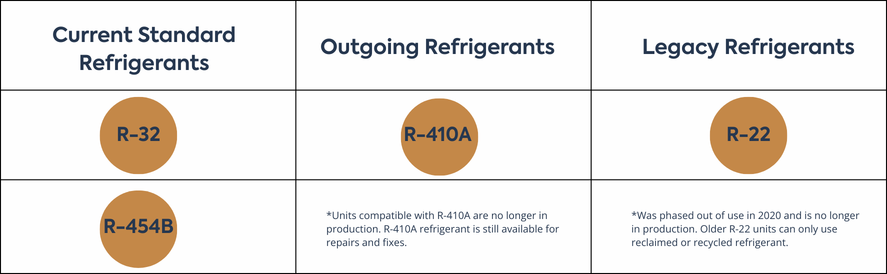

Refrigerants are substances used in HVAC systems to effectively absorb and release heat. Many older refrigerants are being replaced with new alternatives to improve HVAC system sustainability.
The Environmental Protection Agency (EPA) has imposed a deadline of January 1, 2025, after which the manufacture and import of many self-contained R-410A systems will be prohibited. The regulation has prompted manufacturers to look into alternatives, with R-454B emerging as a leading candidate.
To understand why, let's examine the differences between R-454B vs. R-410A.
What Is R-410A?
R-410A is a blended refrigerant introduced in the early 1990s. It quickly gained popularity due to its high efficiency and effectiveness in residential and commercial applications. However, its high GWP has raised concerns about its environmental impact.
Its advantages include:
- High energy efficiency
- Effective cooling performance
A couple of disadvantages include:
- High GWP and environmental impact
- Regulatory pressures leading to phase-down
What Is R-454B?
R-454B is a hydrofluoroolefin (HFO) refrigerant developed in the late 2010s as a lower global warming potential (GWP) alternative to R-410A. While R-410A has a GWP between 1,890 and 2,100, R-454B boasts a GWP of just 466, making it a more environmentally friendly option. Other alternatives include R-32, which has a GWP of 675 and is favored by some manufacturers.

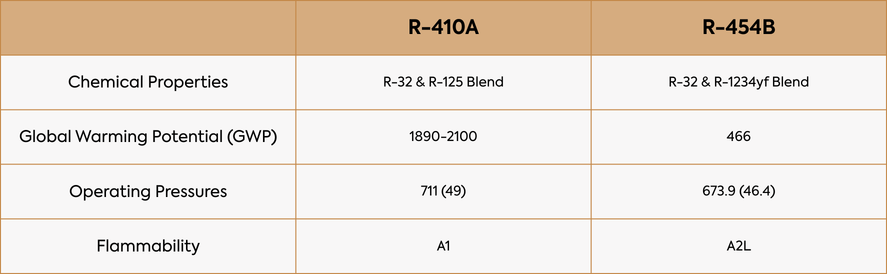

What Are the Key Differences Between R-454B and R-410A?
The key differences of R-454B vs. R-410A primarily lie in their:
Chemical Properties
R-410A is a blend of two refrigerants — Difluoromethane (R-32) and Pentafluoroethane (R-125). Its chemical formula is CH₂F₂, containing one carbon atom bonded to two hydrogen atoms and two fluorine atoms.
R-454B is also a blend of two refrigerants — 1,1-Difluoromethane (R-32) and 2,3,3,3-Tetrafluoropropene (R-1234yf). R-32's chemical formula is C₂H₂F₂, containing two carbon atoms bonded to two hydrogen atoms and two fluorine atoms. R-1234yf's chemical formula is C₃H₂F₄, containing three carbon atoms with four fluorine atoms and two hydrogen atoms.
Like R-410A, R-454B's performance characteristics derive from combining its components. Its lower GWP is attributed to HFOs like R-1234yf, designed to be more environmentally friendly than traditional HFCs.
Global Warming Potential
The GWP of R-410A ranges from 1,890 to 2,100 compared to R-454B's GWP of 466, highlighting the significant environmental benefits of switching.
Energy Efficiency
Both refrigerants provide efficient cooling. However, systems using R-454B may operate at similar or slightly improved energy efficiency levels compared to those using R-410A.
Operating Pressures
When comparing R-454B vs. R-410A pressure, R-454B operates at lower pressures than R-410A. R-454B refrigerant operates at 673.9 (46.4), while R-410A operates at 711 (49). However, since the difference is slight, they may use similar designs, meaning a reduced learning curve for equipment service technicians.
Flammability
R-410A falls into the A1 classification of refrigerants that do not propagate flames. R-454B falls into the new category A2L, or mildly flammable.
Can R-454B Be Used in an R-410A System?
R-454B cannot be a drop-in replacement for an existing R-410A system. While they have similar characteristics, current codes and regulations restrict the use of R-454B to systems for which it was specifically designed.
System Design Requirements
The good news is that R-454B closely matches R-410A, limiting the level of system or component redesign required. Components like compressors and filter driers must be rated and sized for R-454B, like any other refrigerant, but differences should be relatively minor overall. The switch to R-454B calls for:
- Safety features: R-454B is considered mildly flammable, so new systems must include safety features to prevent fires if there's a leak. These features might include labels that indicate the refrigerant's flammability, leak detection and control systems, or protective enclosures for electrical components.
- Proper storage: R-454B refrigerant cylinders must be stored in a well-ventilated area away from direct sunlight, heat sources, and sparks. They should also not be exposed to extremely high temperatures.
- Proper handling techniques: Only qualified technicians should handle this refrigerant, following manufacturer recommendations and proper refrigerant handling techniques. While some equipment comes with pre-installed refrigerant detection systems, others may require you to order and install these separately if needed.
Many existing tools, such as wrenches and tube cutters, currently used with R-410A, will be suitable for R-454B. However, technicians must ensure their manufacturer's vacuum pumps, recovery machines, and leak detectors are compatible with A2L refrigerants.
Technical Considerations for Replacement
When getting into the finer details of replacing an old system with R-454B, certified technicians should consider proper recovery, disposal, and system performance expectations like:
Refrigerant Recovery and Disposal
The EPA regulates refrigerant recovery and disposal under Section 608 of the Clean Air Act. The Act includes mandates for proper handling and disposal of ozone-depleting substances and high-GWP refrigerants.
To safely recover R-410A before replacing it with R-454B, technicians must follow the EPA's specific guidelines to ensure compliance:
- Use certified recovery equipment designed for high-pressure refrigerants.
- Connect the recovery machine to the system’s service ports, ensuring all connections are secure to prevent leaks.
- Run the recovery machine until the system pressure reaches zero, indicating that all refrigerant has been removed.
Monitor the recovery process continuously and document the amount of refrigerant recovered. After recovery, store refrigerants in the proper containers labeled by EPA standards. Transport the containers to an approved recycling or disposal facility that is compliant with local regulations.
System Performance Expectations
When switching from R-410A to R-454B, you can expect similar cooling performance. R-454B is designed to deliver similar efficiency levels while contributing to a lower environmental impact.
Depending on system design and operating conditions, energy consumption patterns may vary slightly after switching to R-454B. However, many systems utilizing R-454B have shown improved energy efficiency due to its favorable thermodynamic properties.
Safety Considerations
Consider the safety risks when working with refrigerants and upgrading a system.
Flammability Risks
While R-410A is nonflammable and R-454B presents a mild flammability risk, only certified technicians with experience handling these refrigerants should use them. They must also follow specific safety measures. R-410A is nonflammable at atmospheric pressure and ambient temperatures but can become combustible if exposed to a strong ignition source and mixed with air under pressure.
Safety Measures During Transition
Technicians should always wear appropriate personal protective equipment to minimize skin and eye contact and protect themselves from splashes when working with these refrigerants. They should also wear proper respiratory protection. As a contractor, you must also undergo appropriate training on handling new refrigerants to reduce the risk of injury or leakage.
Ensure adequate ventilation in storage facilities. When handling, never lever lift a cylinder by the top valve. When charging the blend, use a flash valve or crack the gauges if you're charging on the low side of a system.
