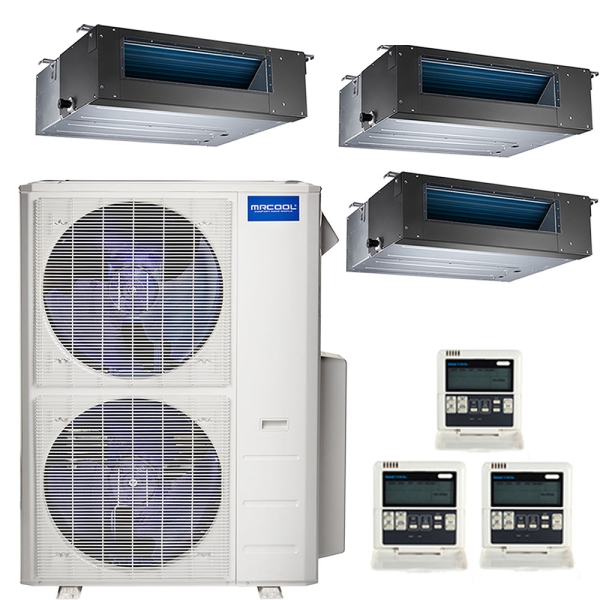

45k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 9k+12k+24k

Item: HA11828
Models: MULTI5-48HP230V1, DUCT-09HP-230, DUCT-12HP-230, DUCT-24HP-230
Condition: New

45k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 9k+12k+24k Zoom

Photo Gallery

Related Videos

Here's a tri-zone Olympus system with the power to heat and cool a vaulted living room, and the flexibility to go small for a child's cozy bedroom. MRCOOL's multi-zone ductless heat pump split systems are all about the mix and match. Here, a MULTI5-48HP230V1 condenser feeds the system with energy-wise featuers including R-410A refrigerant. Concealed duct air handlers go from big to small: one 24k unit, one 12k unit, and one 9k unit.

Availability: In stock

Was: $4,688.00 Click for price

Price as configured:

Was: $4,688.00 Click for price
Ingram Financing


Ships Within 1-2 Business Days

Due to order volume, this item may not ship for 5-7 business days.

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone 48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone Item: HA11048 Model: MULTI5-48HP230V1 Qty: 1
9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 1
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 1
24k BTU MrCool Olympus Ceiling Recessed Air Handler 24k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11059 Model: DUCT-24HP-230 Qty: 1

* Required Fields

Overview

MRCOOL offers a large variety ductless heat pump solutions for your home or small business. Do you have a room that is chilly in the winter months and hot in the summer months? Take advantage of MRCOOL heat pump technology. It can switch from cooling to heating seamlessly, keeping your space comfortable. The concealed duct system can be tucked away behind drop ceiling or drywall, leaving the system out of site and out of mind. The provided wired controller also has lots of convenient features like the control of your fan speed, heating, cooling, dry and swing mode. Auto swing mode allows your unit to automatically distribute air evenly through your space.

This 45,000 BTU MRCOOL Olympus ductless heat pump system comes with 3 concealed duct air handlers to install in 3 different spaces or can be combined and installed in one space. The 9000 BTU air handler is great for smaller space between 350 to 400 square feet, the 12,000 BTU air handler is ideal for spaces 450 to 550 square feet and the 24,000 BTU unit can be used for spaces up to 1500 square feet. If you want to combine all 3 to cover an open space, the system is best suited for a space between 1750 and 2100 square feet with the condenser capacity. If these sizes don’t fit your application, the Olympus series has many options to choose from to suite the needs of your home or business.

Here's a tri-zone Olympus system with the power to heat and cool a vaulted living room, and the flexibility to go small for a child's cozy bedroom. MRCOOL's multi-zone ductless heat pump split systems are all about the mix and match. Here, a MULTI5-48HP230V1 condenser feeds the system with energy-wise featuers including R-410A refrigerant. Concealed duct air handlers go from big to small: one 24k unit, one 12k unit, and one 9k unit.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI5-48HP230V1,DUCT-09HP-230,DUCT-12HP-230,DUCT-24HP-230
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
Bundle Cooling Capacity 3.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 3
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 52
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 224.0000
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-24HP-230 Specifications:

Model DUCT-24HP-230
UPC 853962006548
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 11
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 57.0000
